FEATURES
6.1M Long-10 Stud Granning Axles
5 LED Marker lights Per side (One extra on bale extension)
4 LED Work Lights
420X180 Brakes-650/50R22.5 Tyres
750MM High Dirt Sides

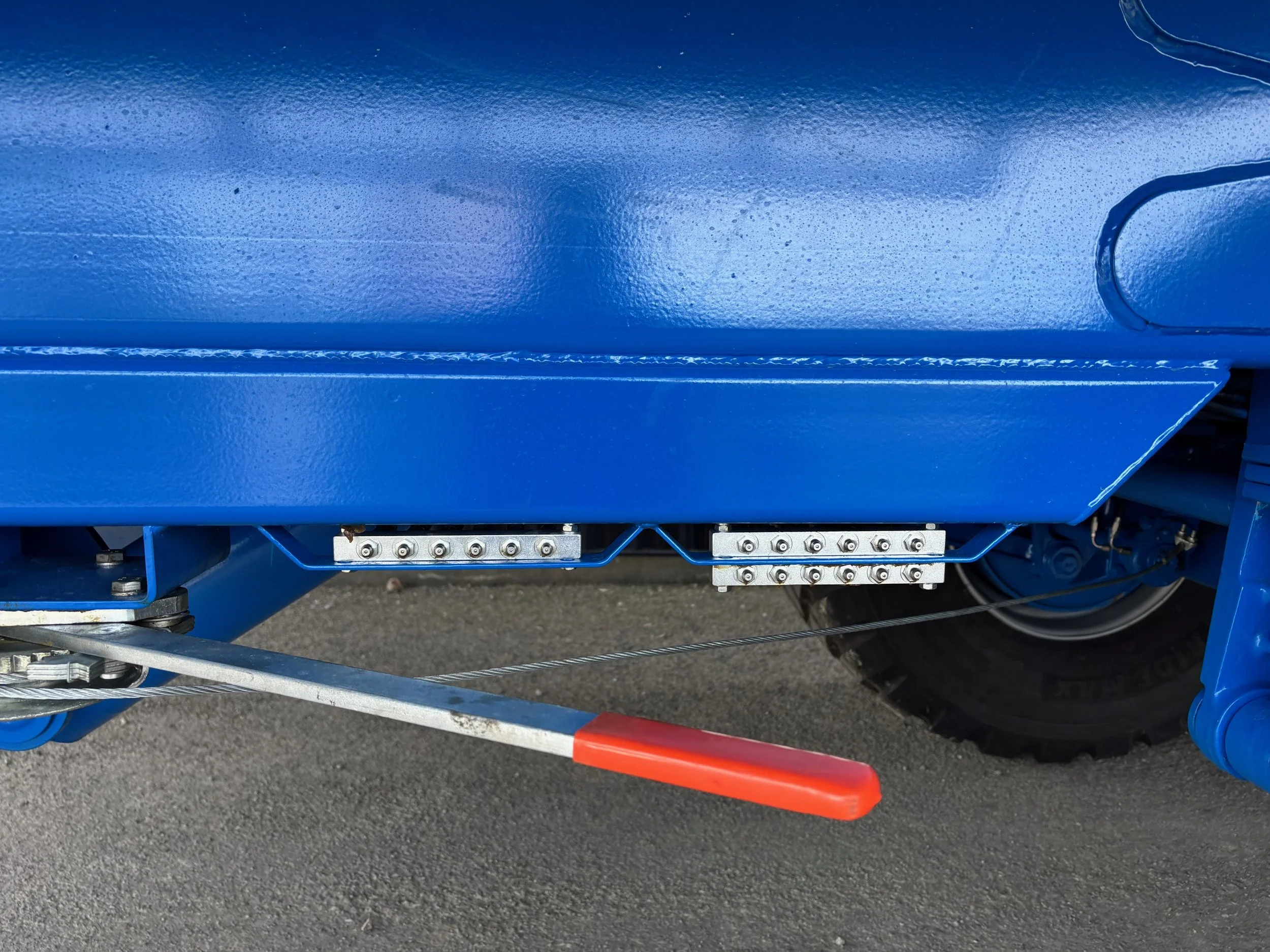

Centralised grease lines
Hardox steel deck and Dirt sides
Heavy Duty rope rail
Hydraulic Jack
Hydraulic Load sensing Brakes

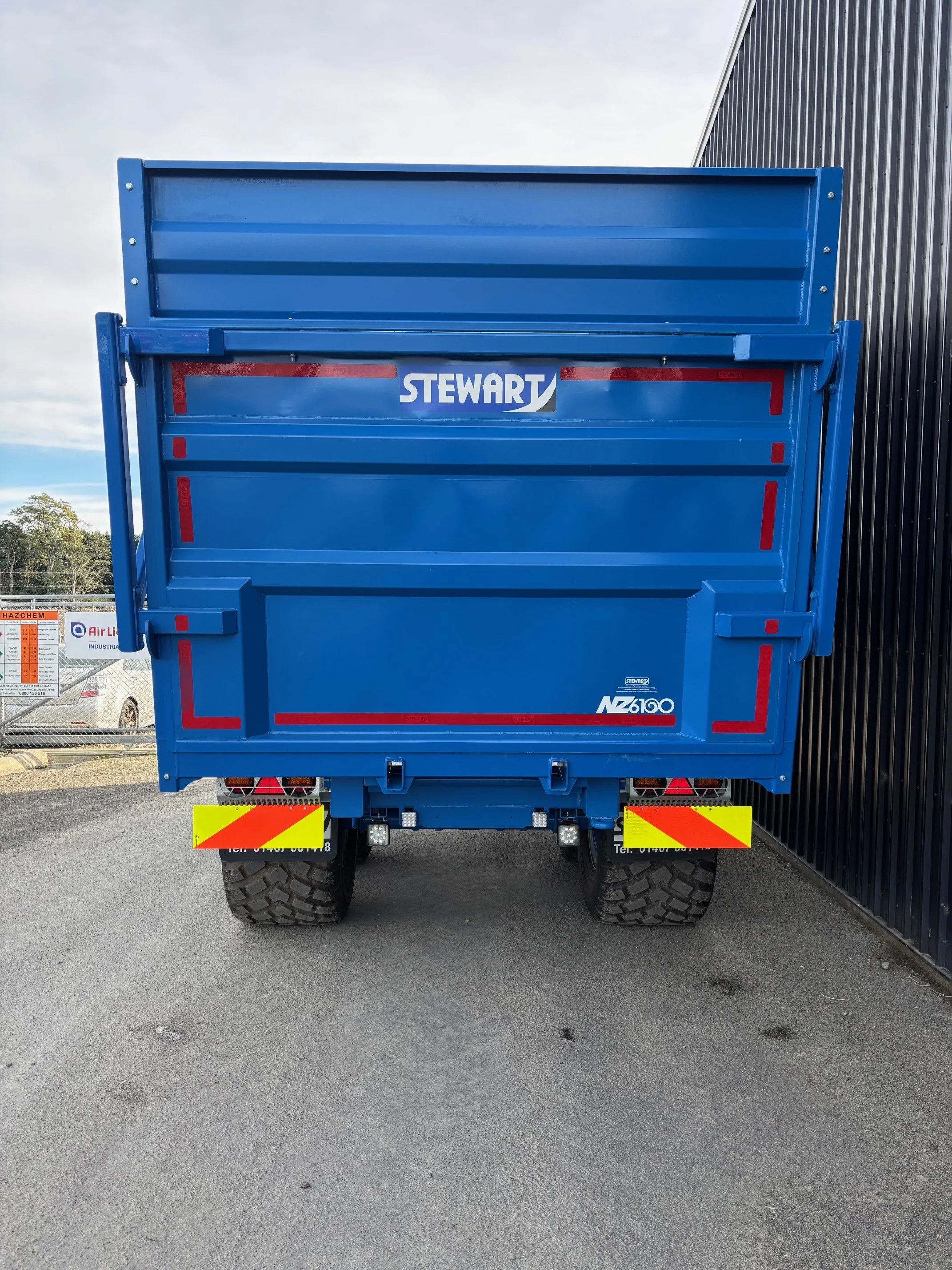

LED Tail Lights (Dual rear flashing Lights)

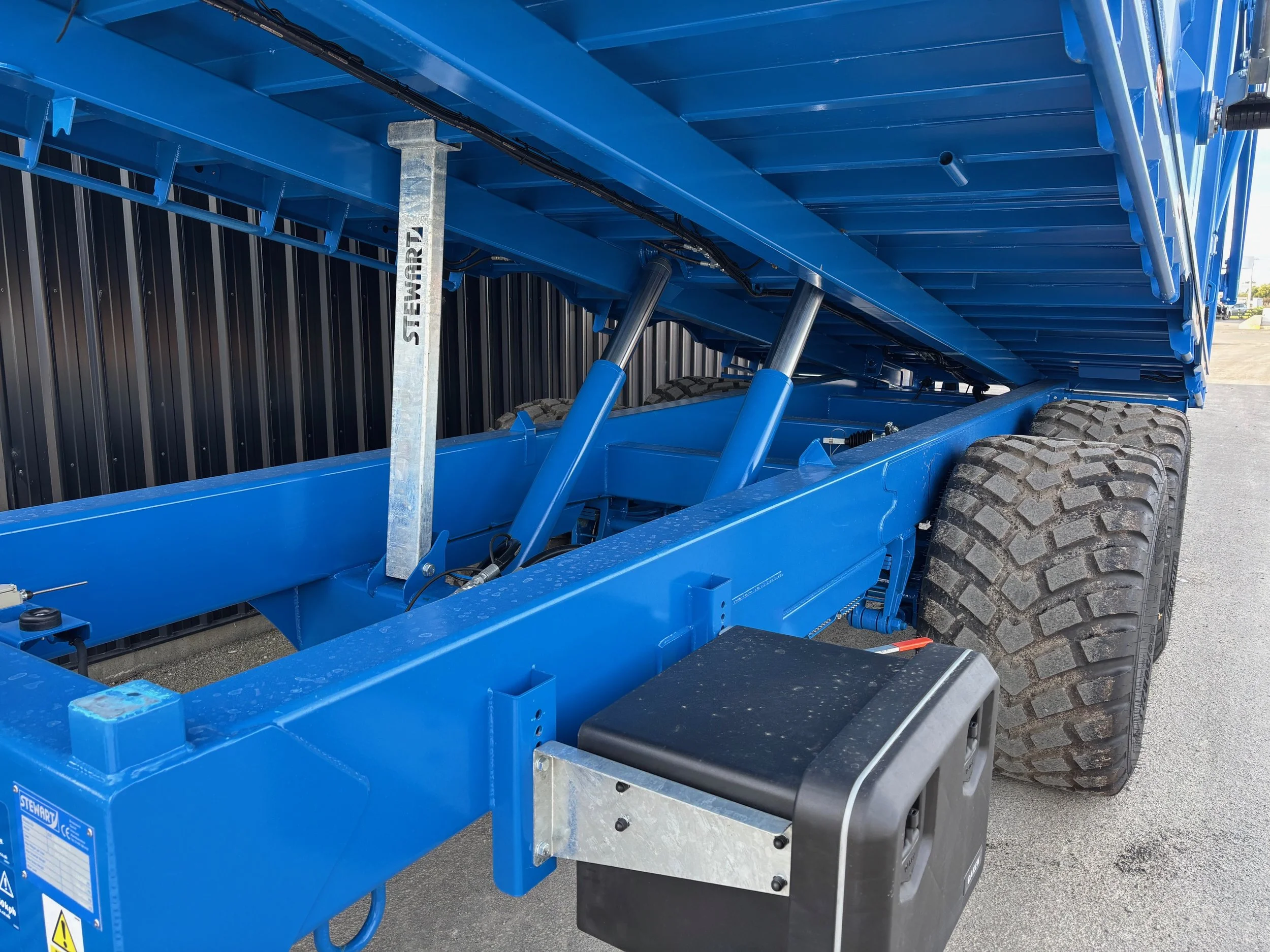

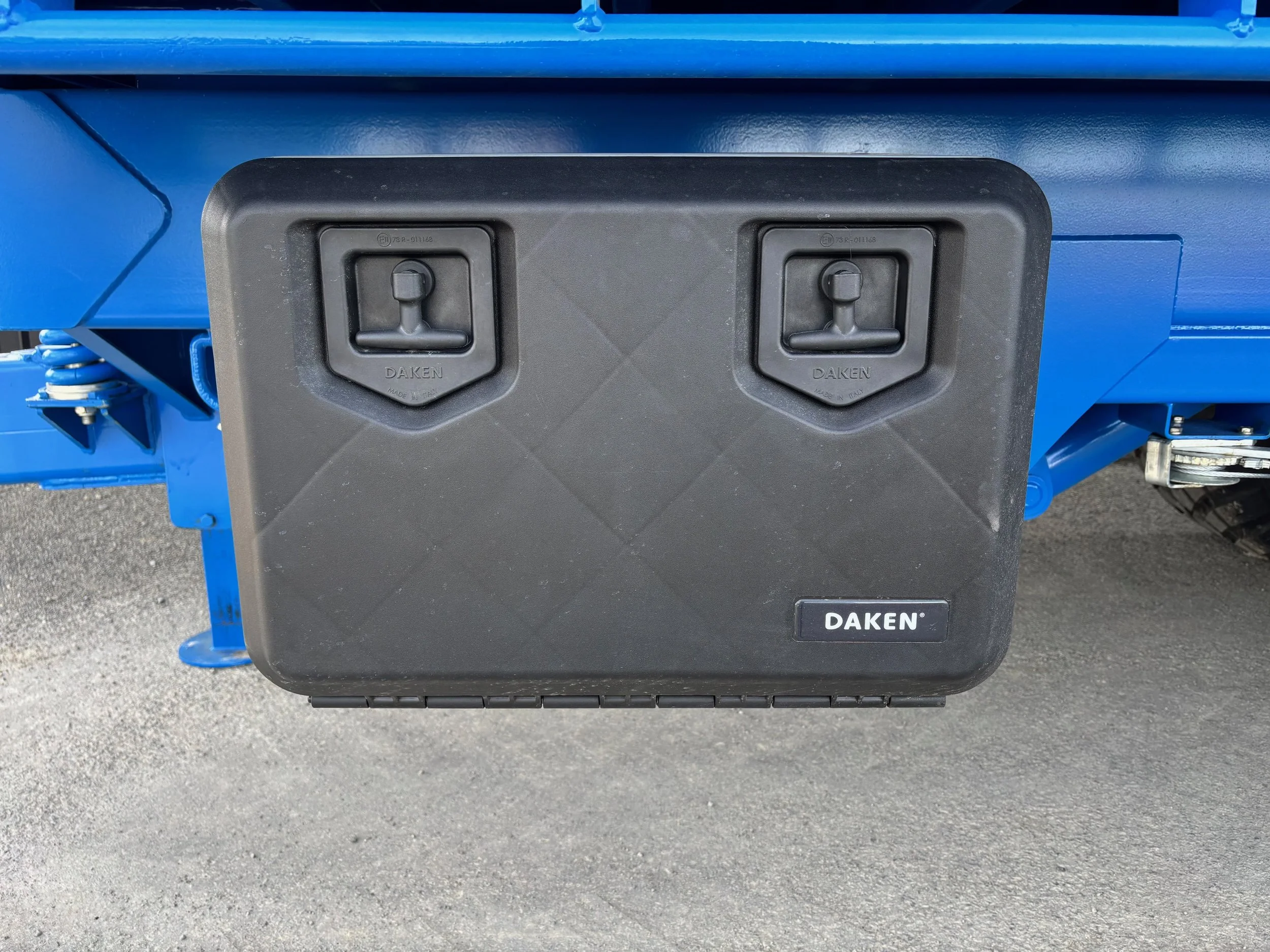

Lockable Toolbox
Removable safety chains

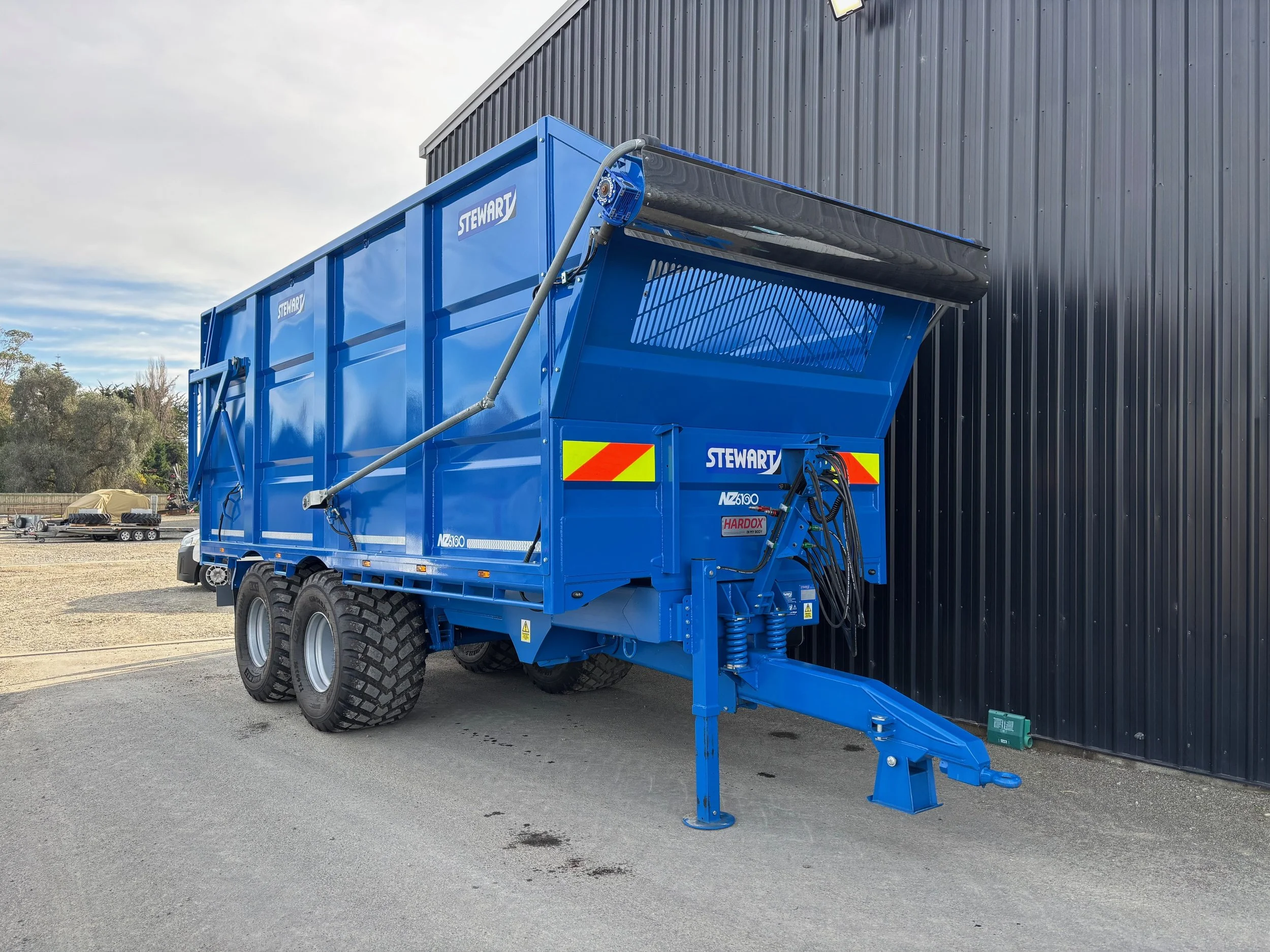

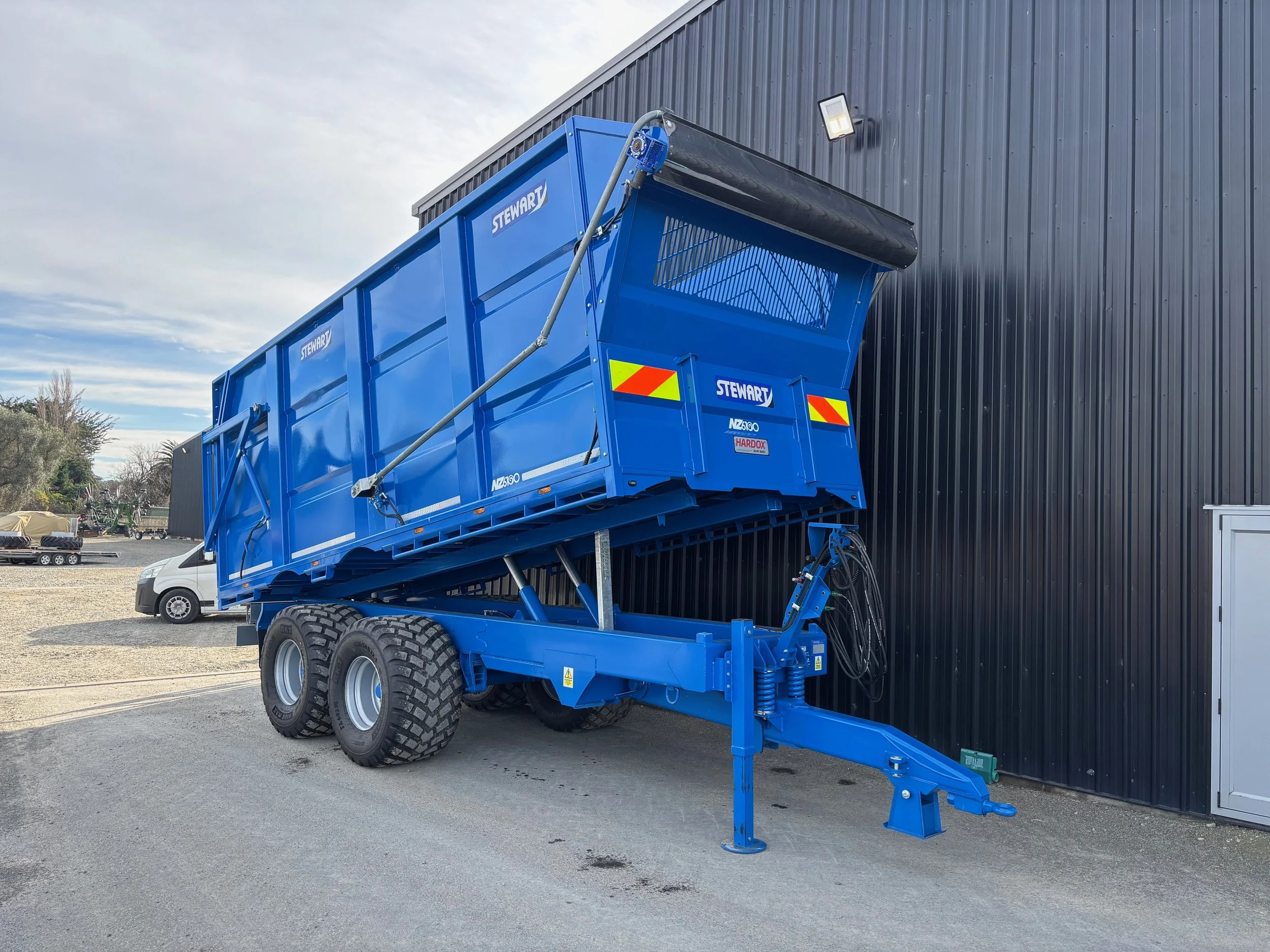

Silage Bin
Silage Bin Cover

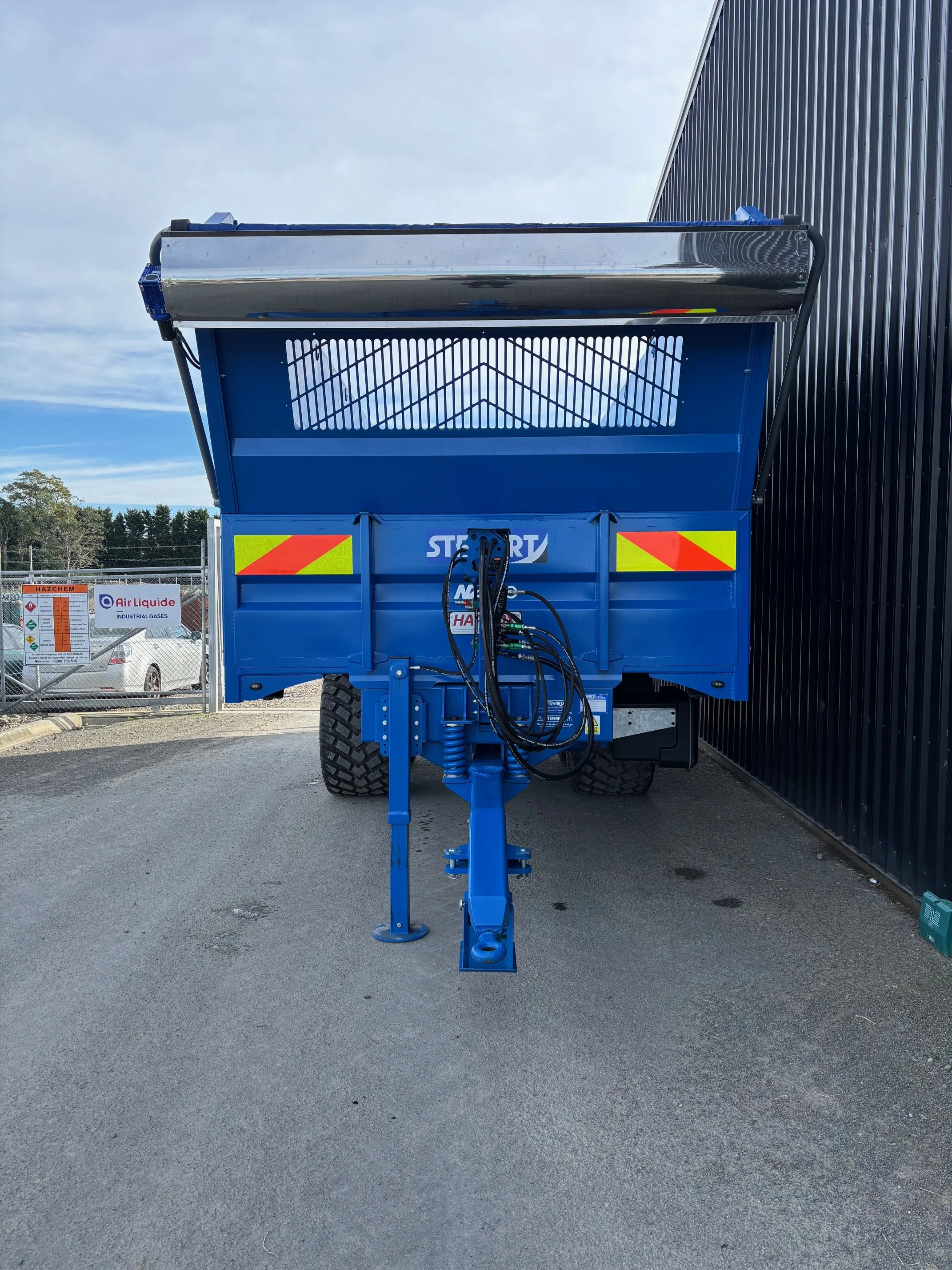

Sprung Drawbar
Swivel eye hitch.

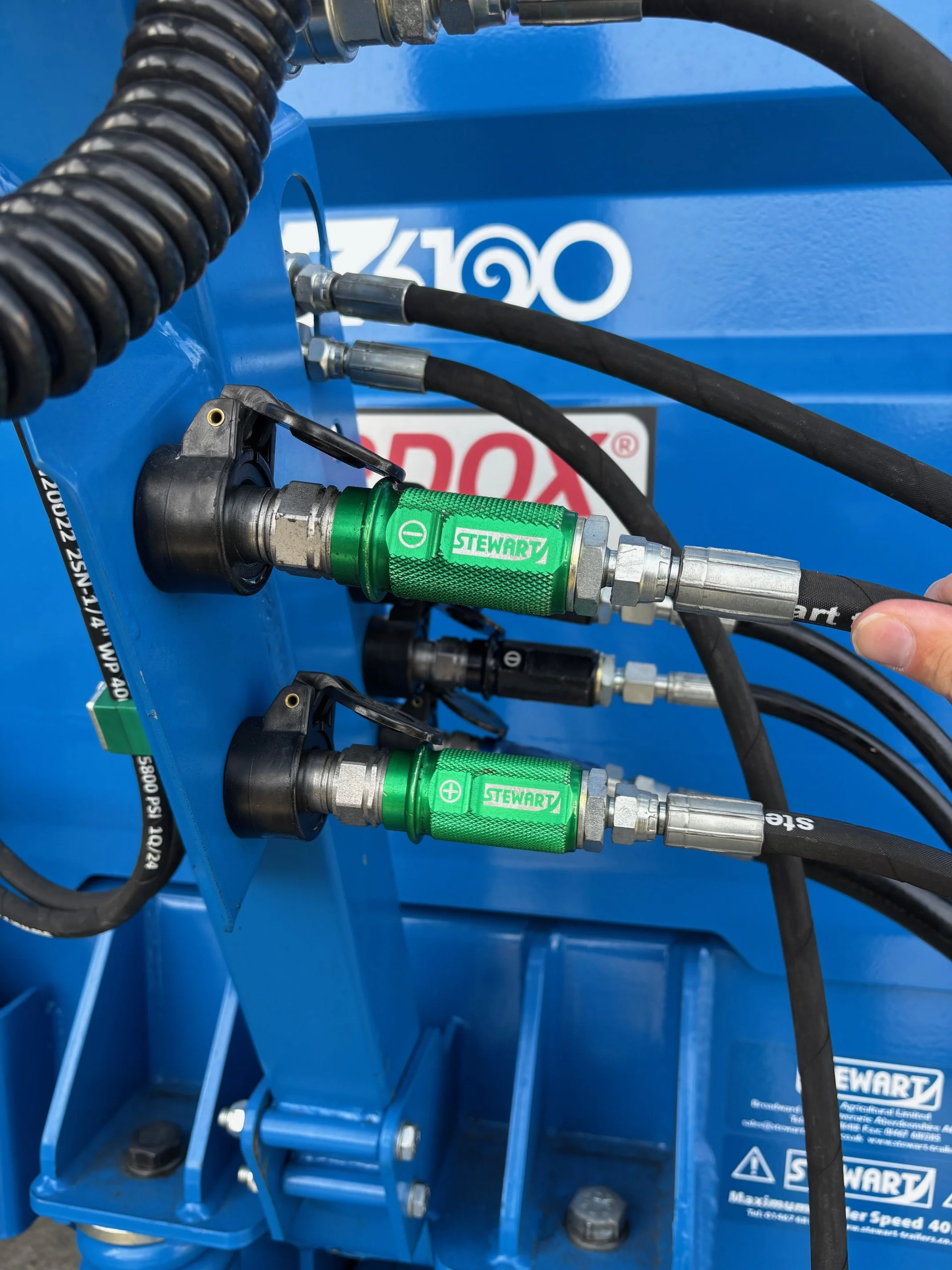

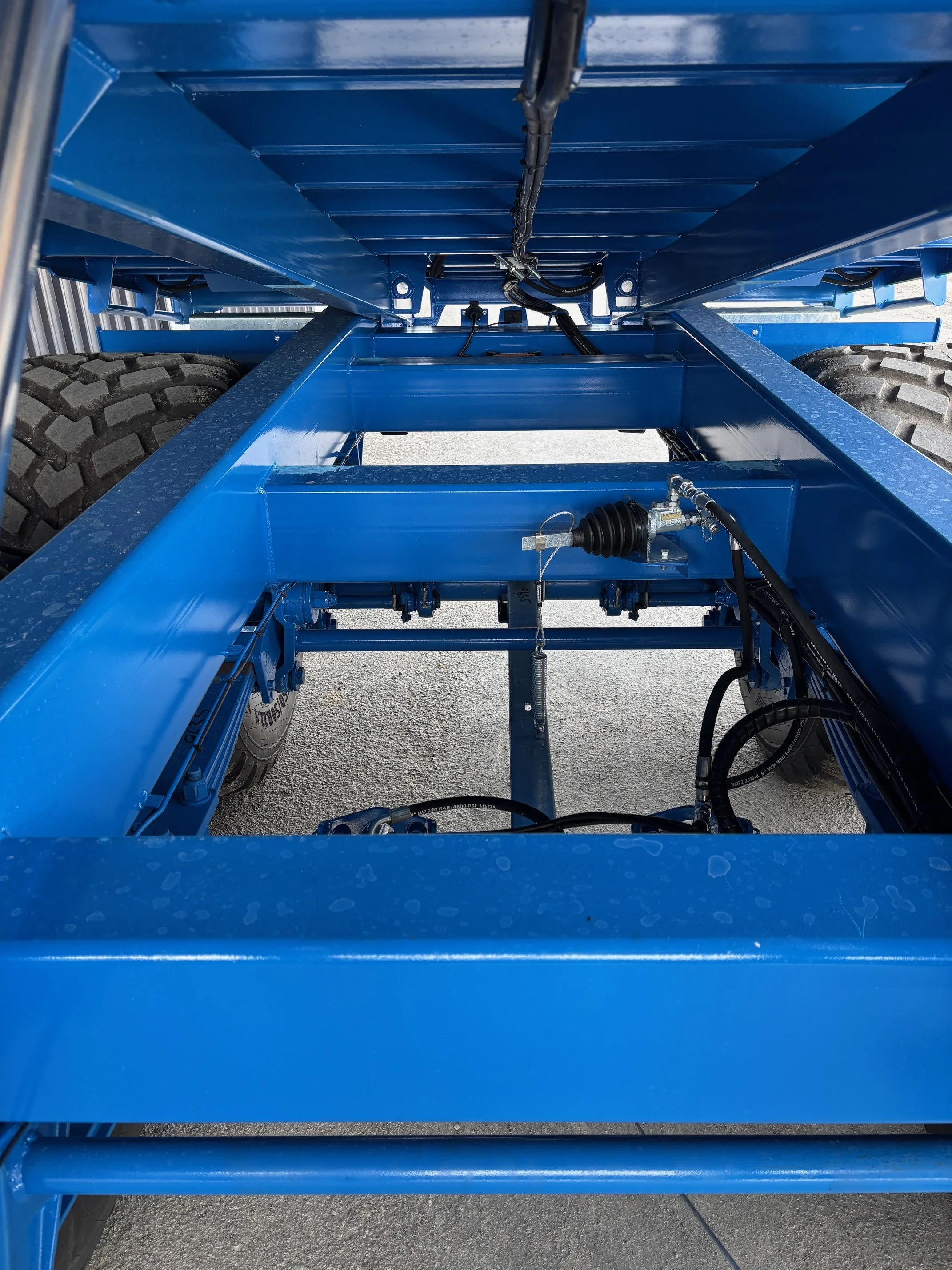

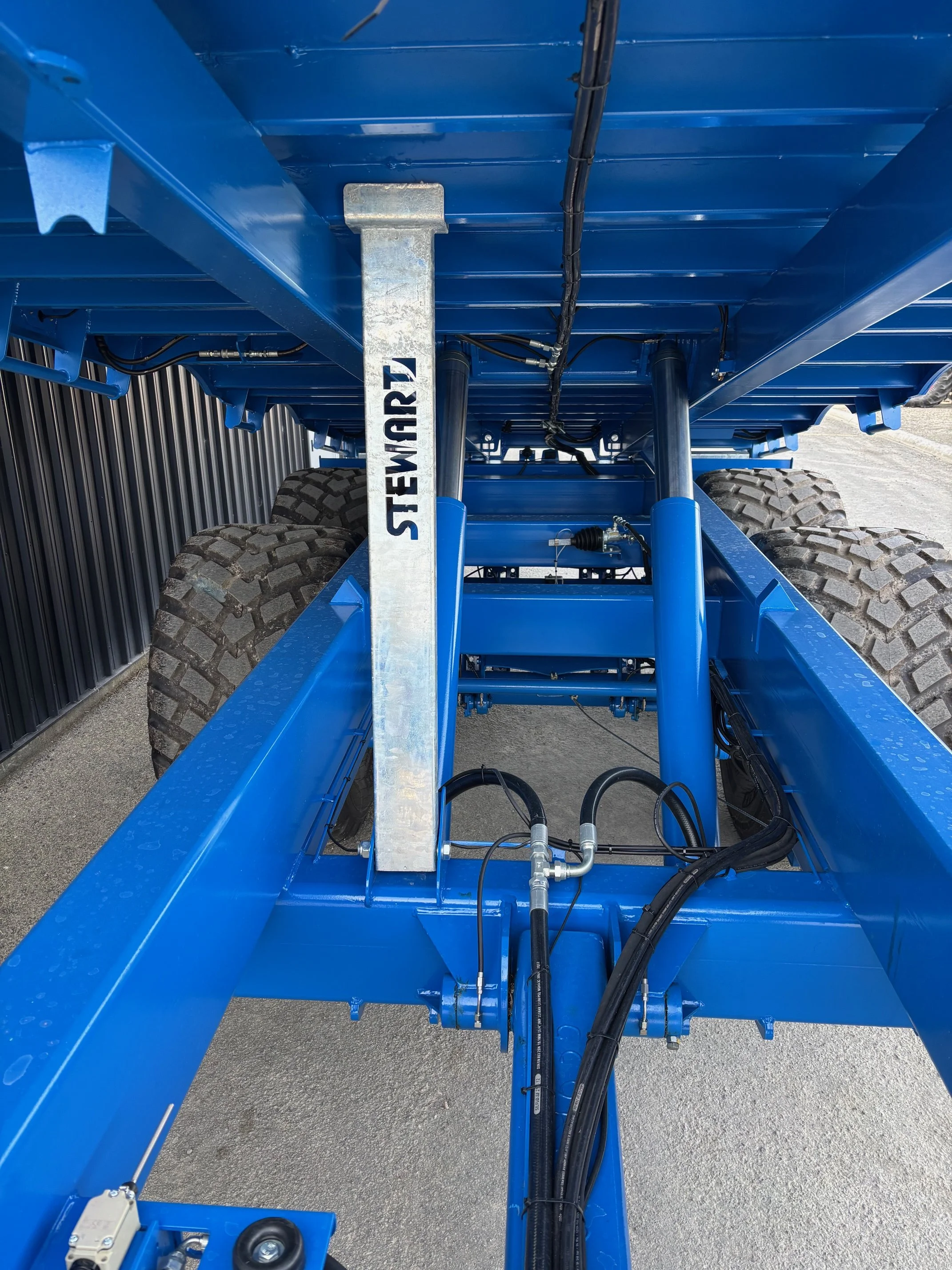

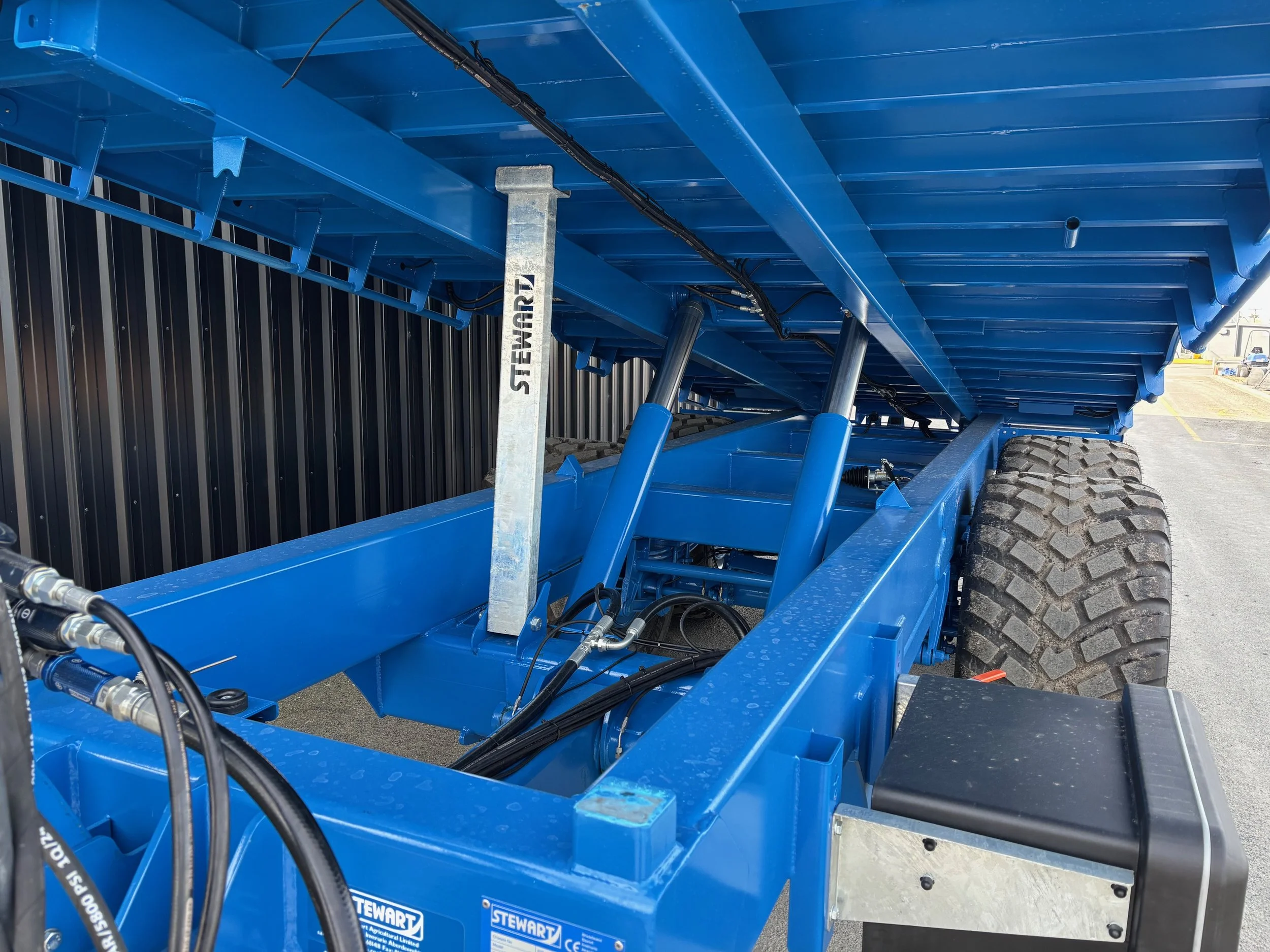

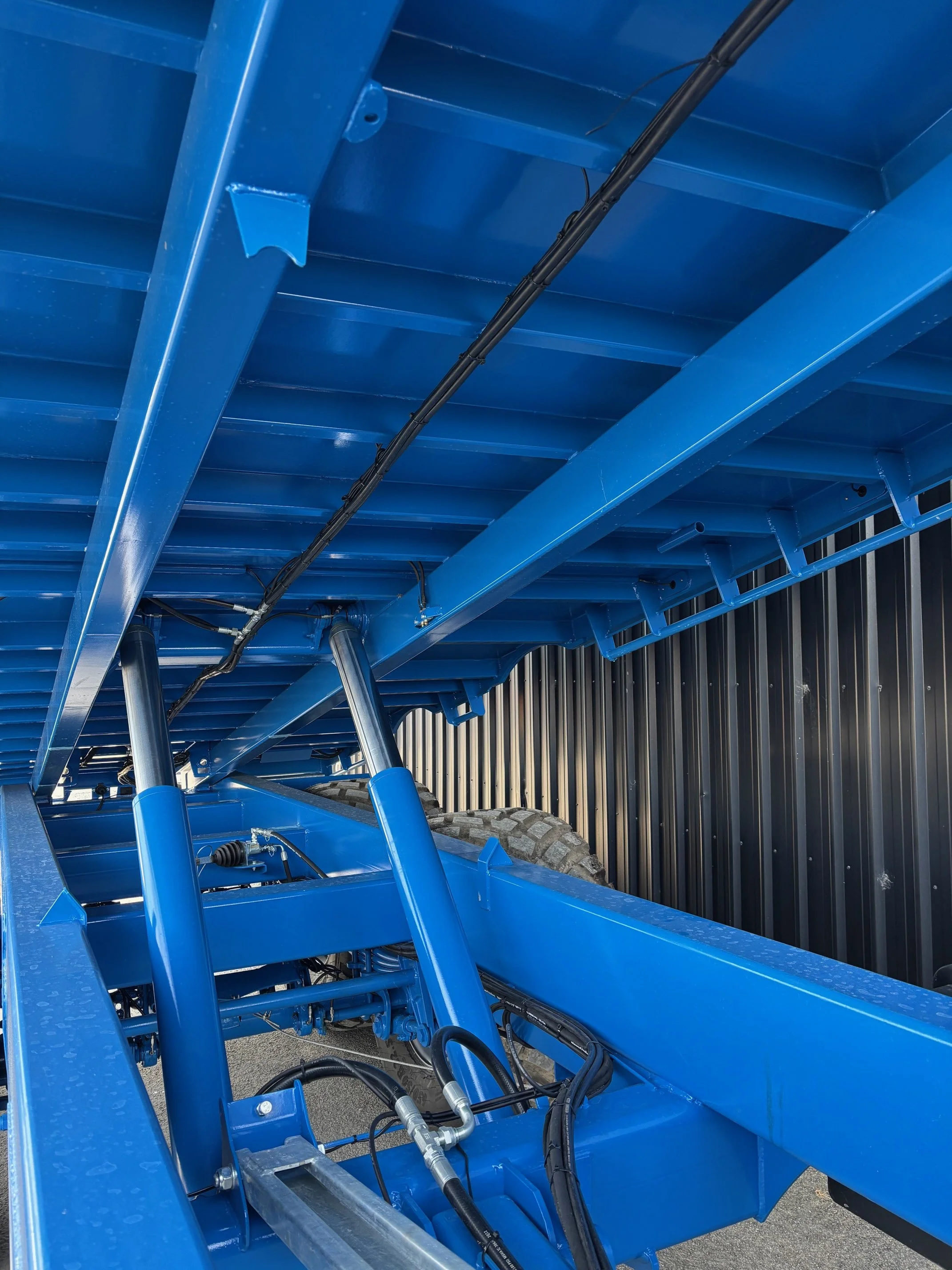

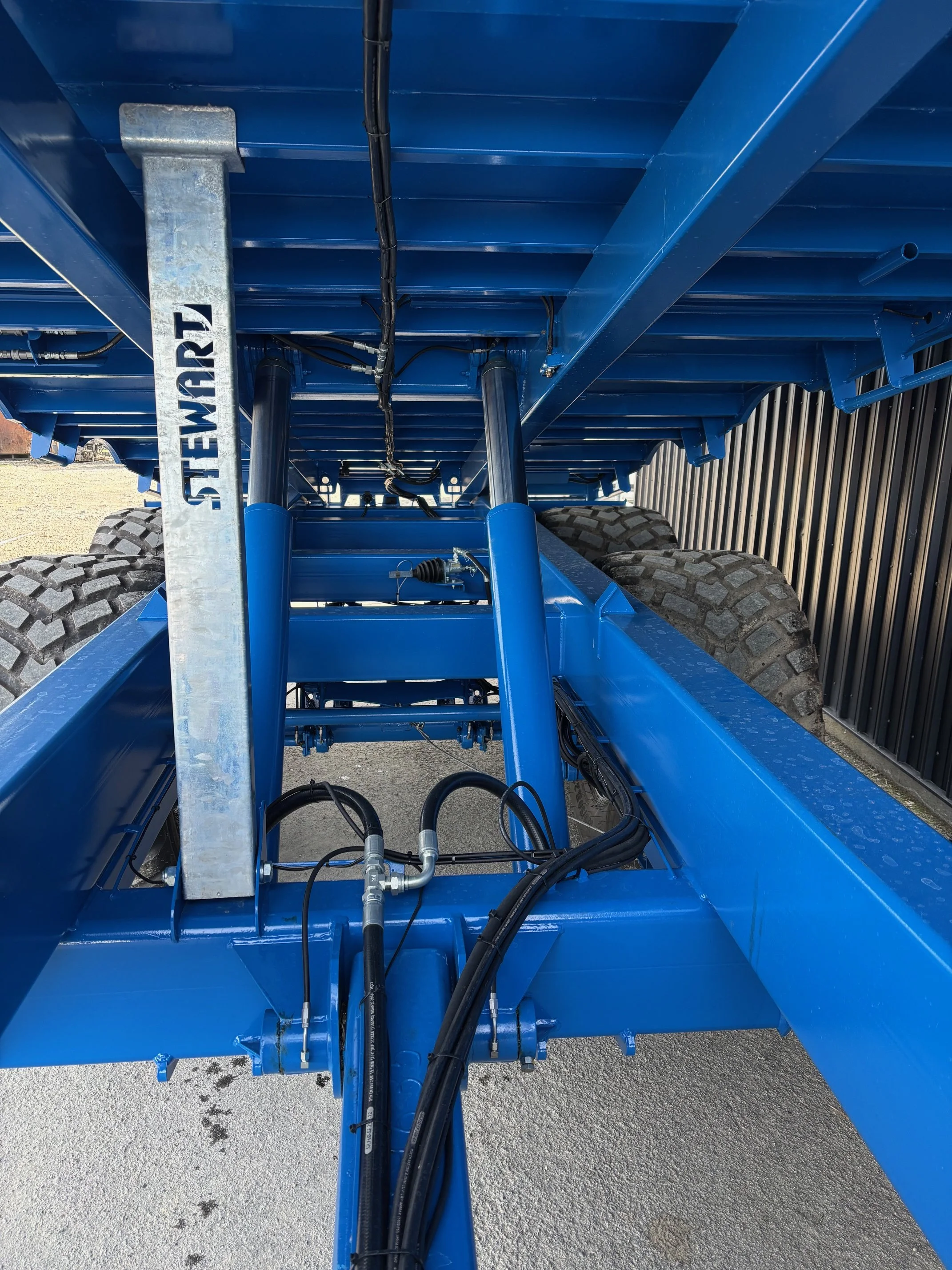

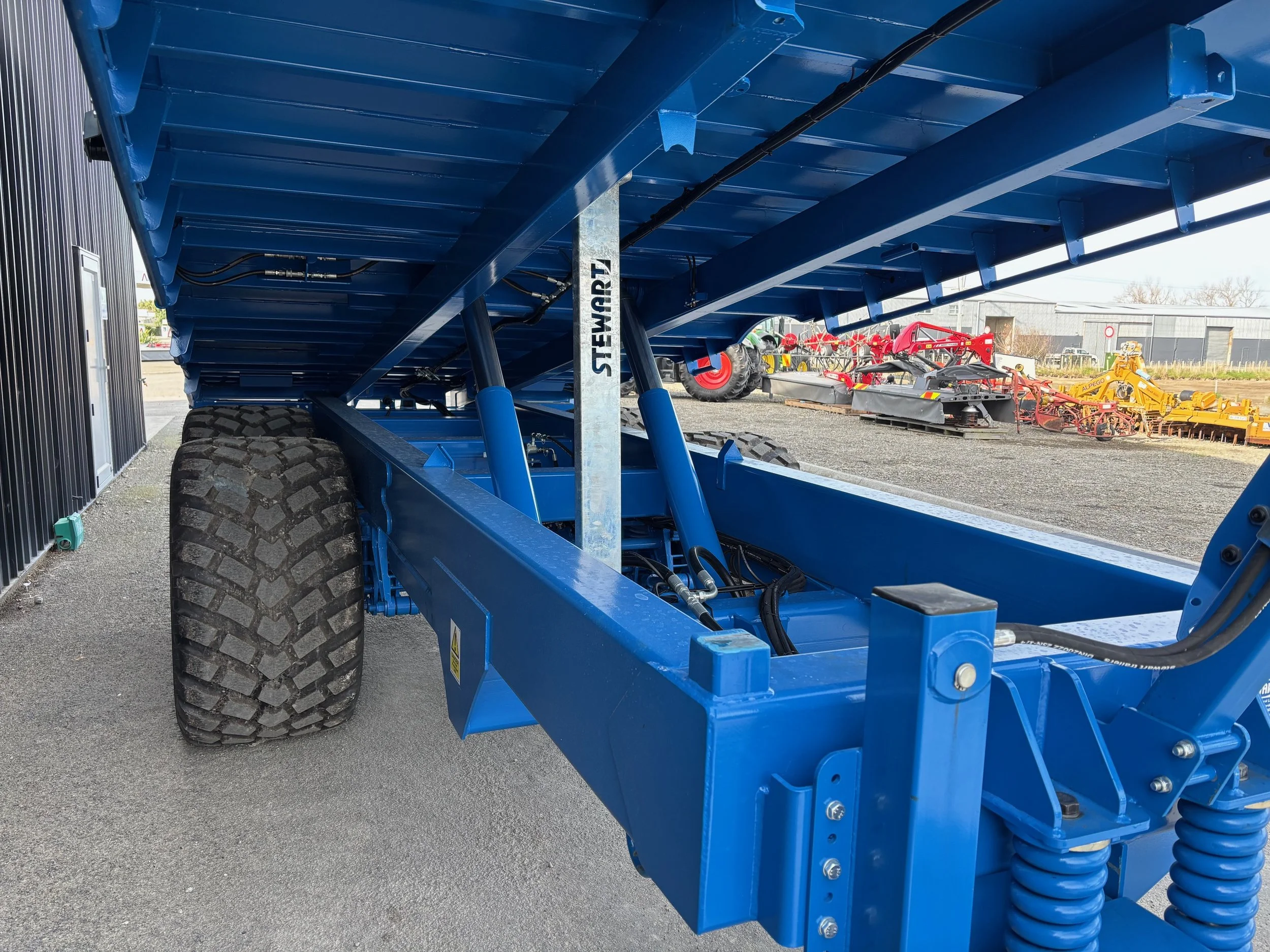

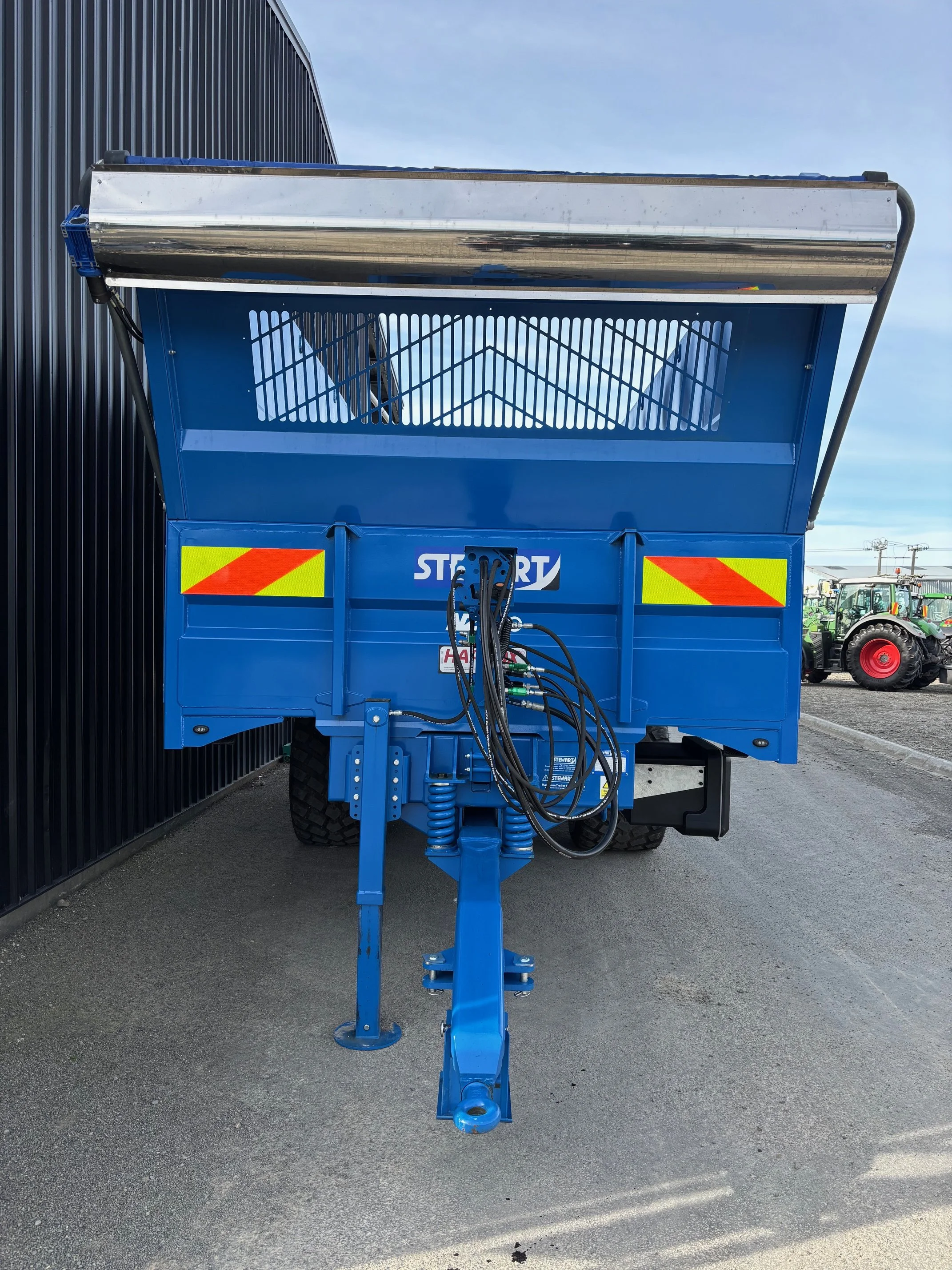

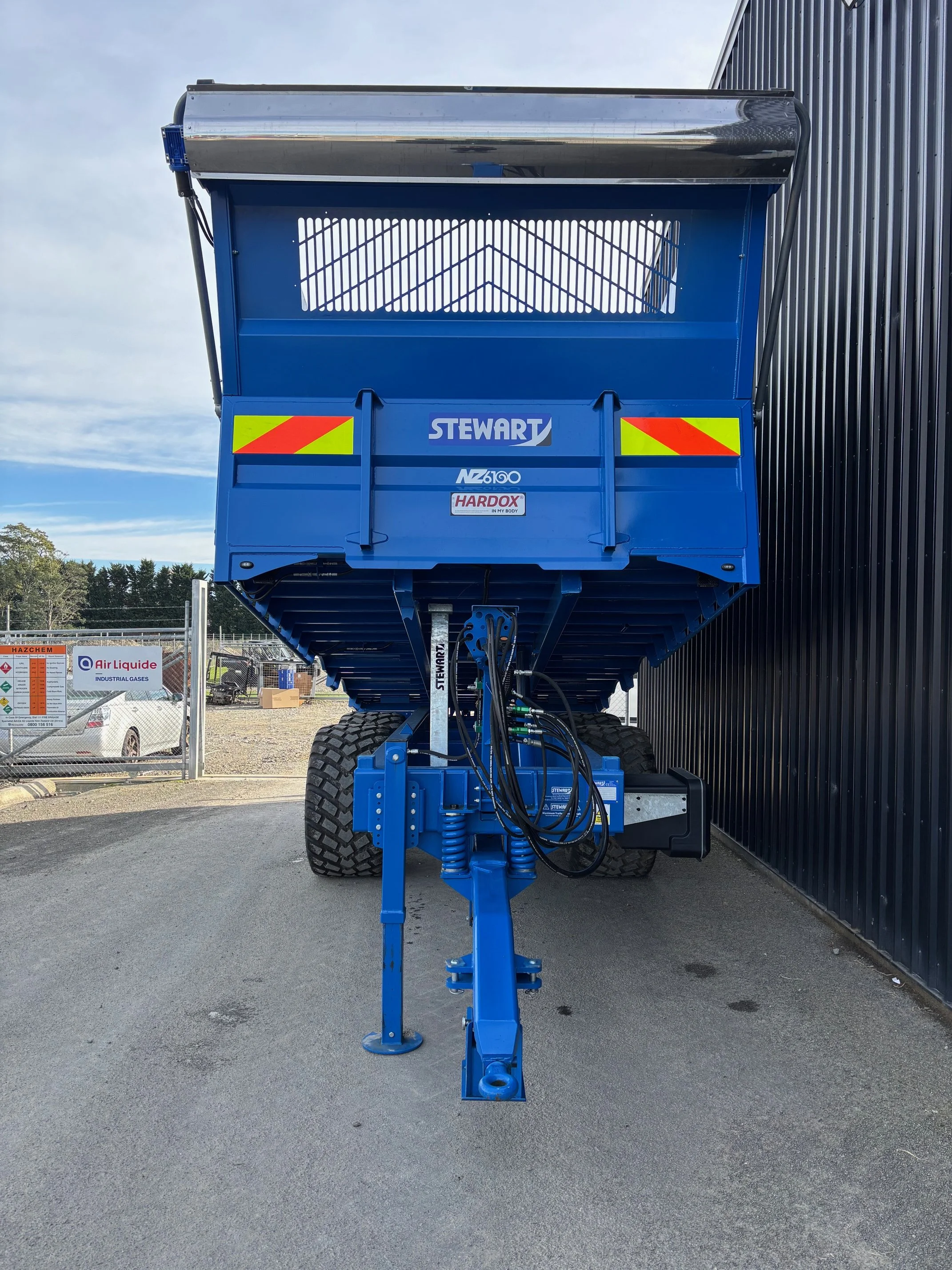

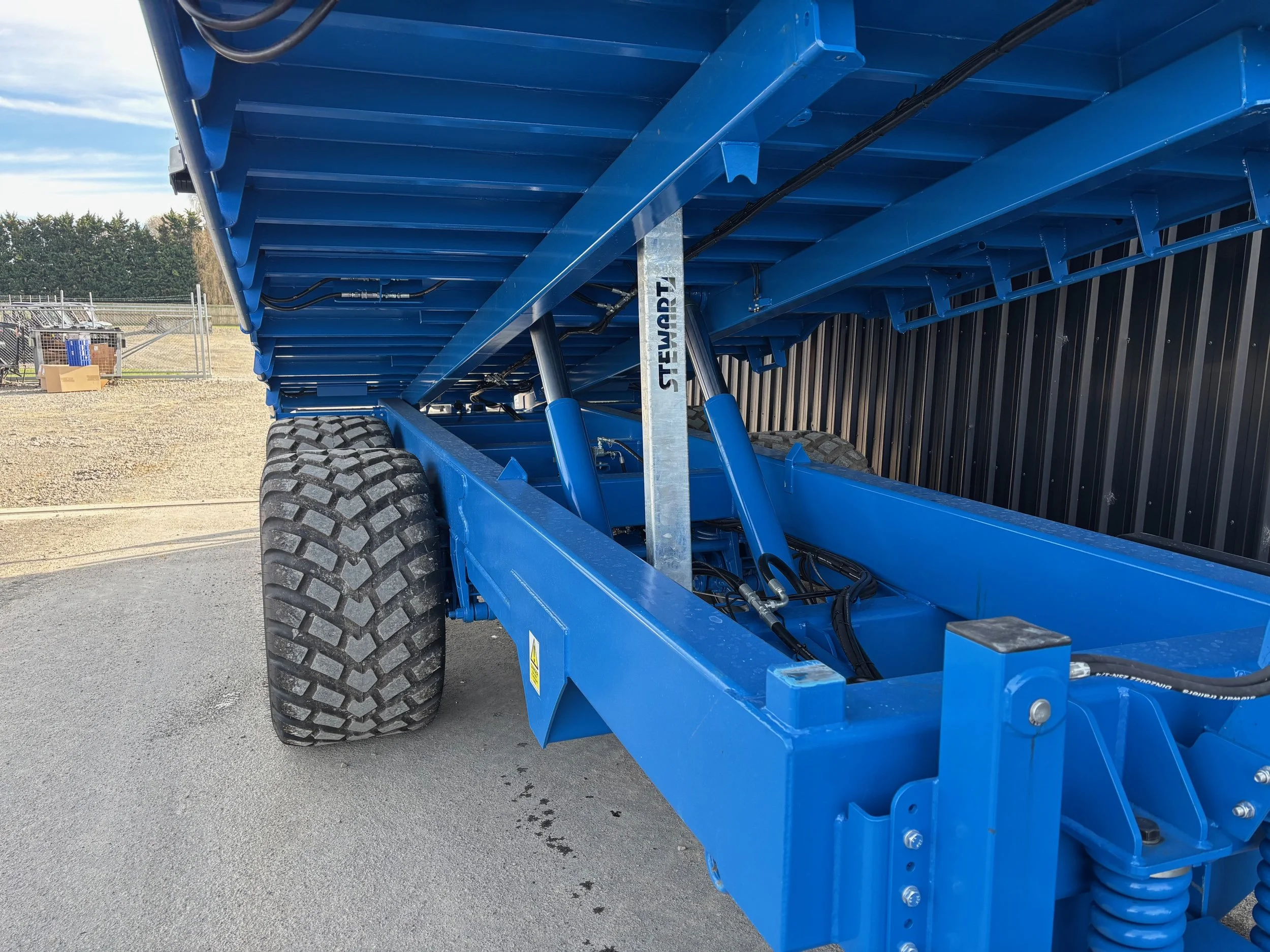

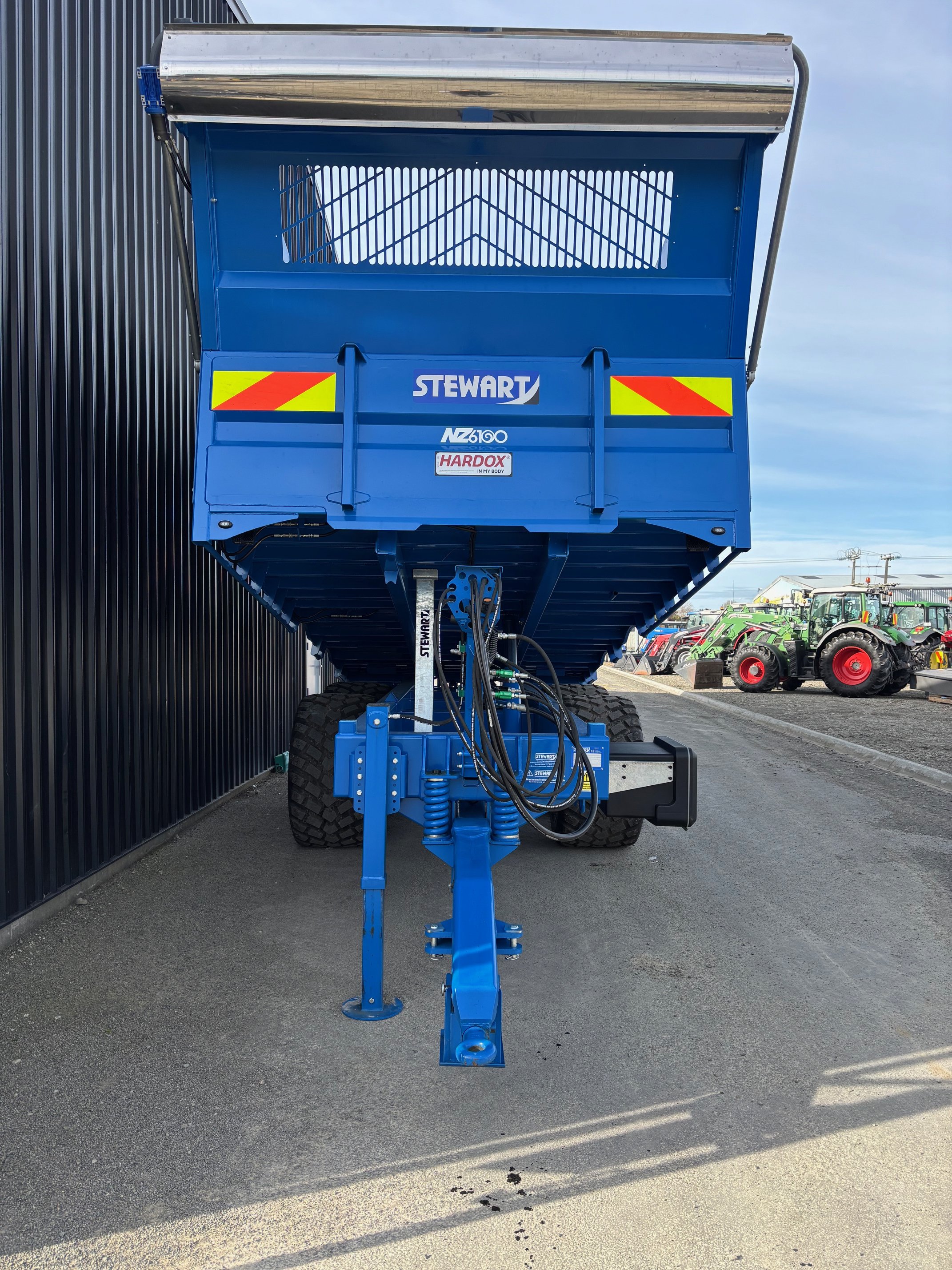

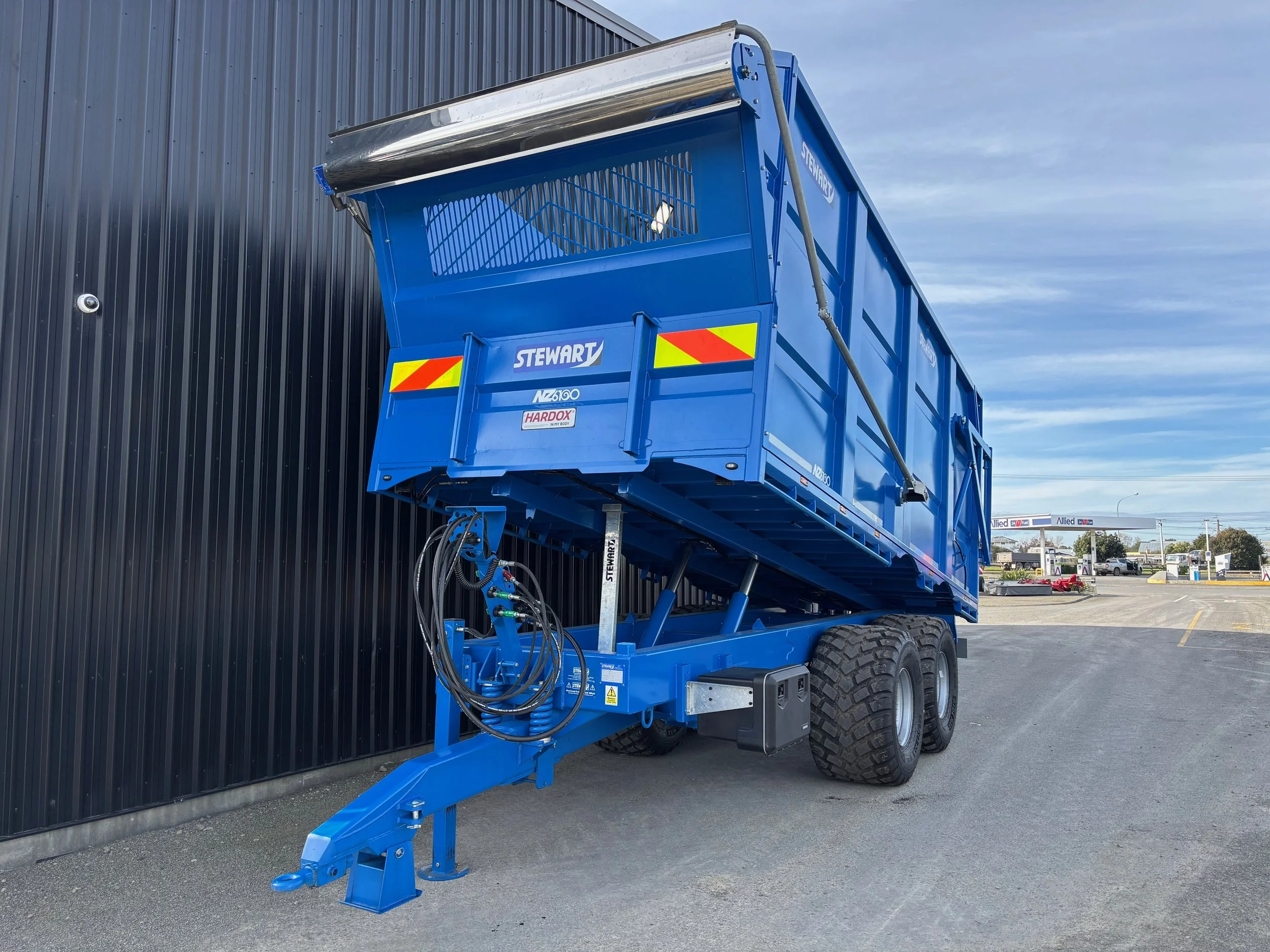

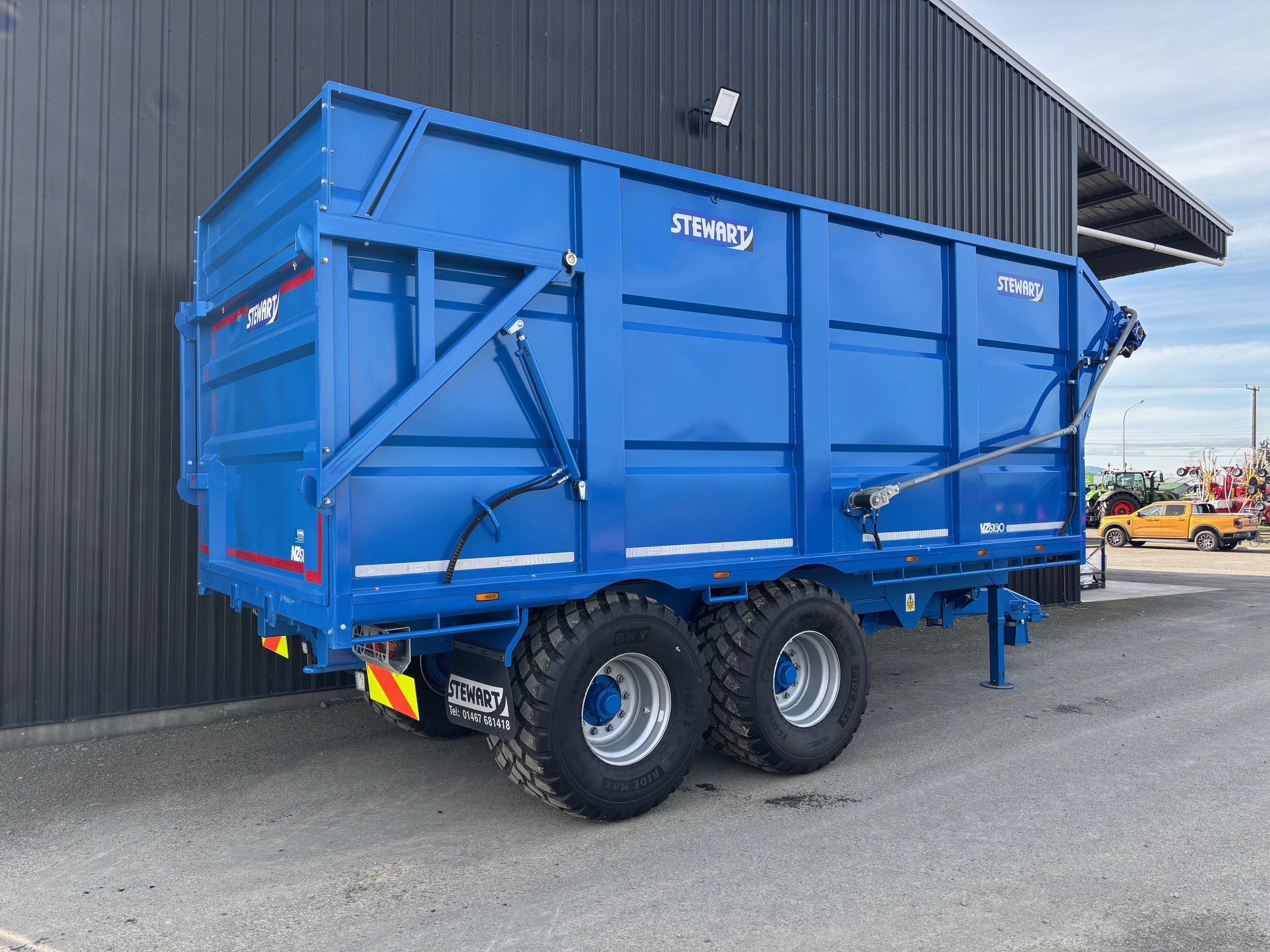

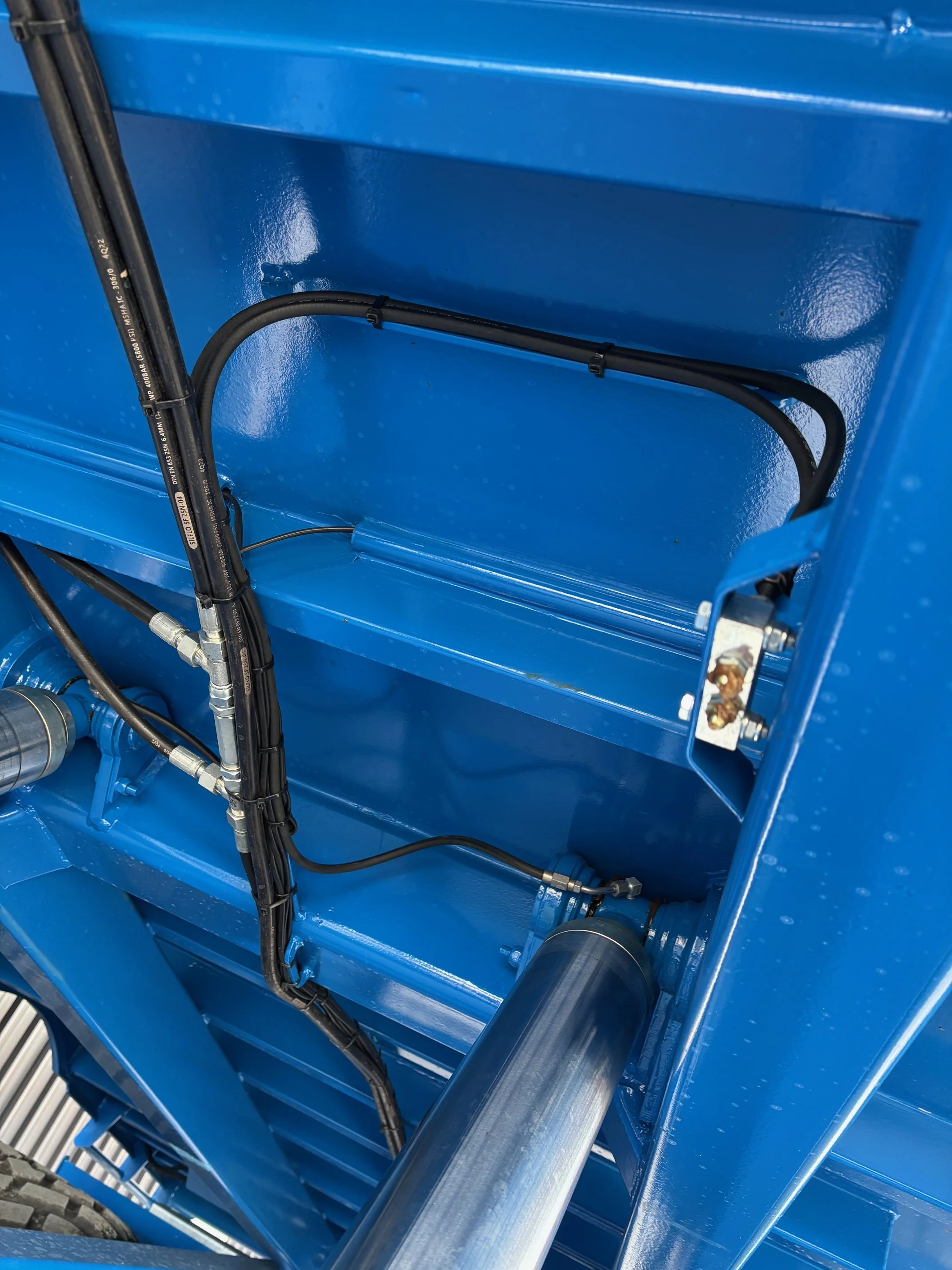

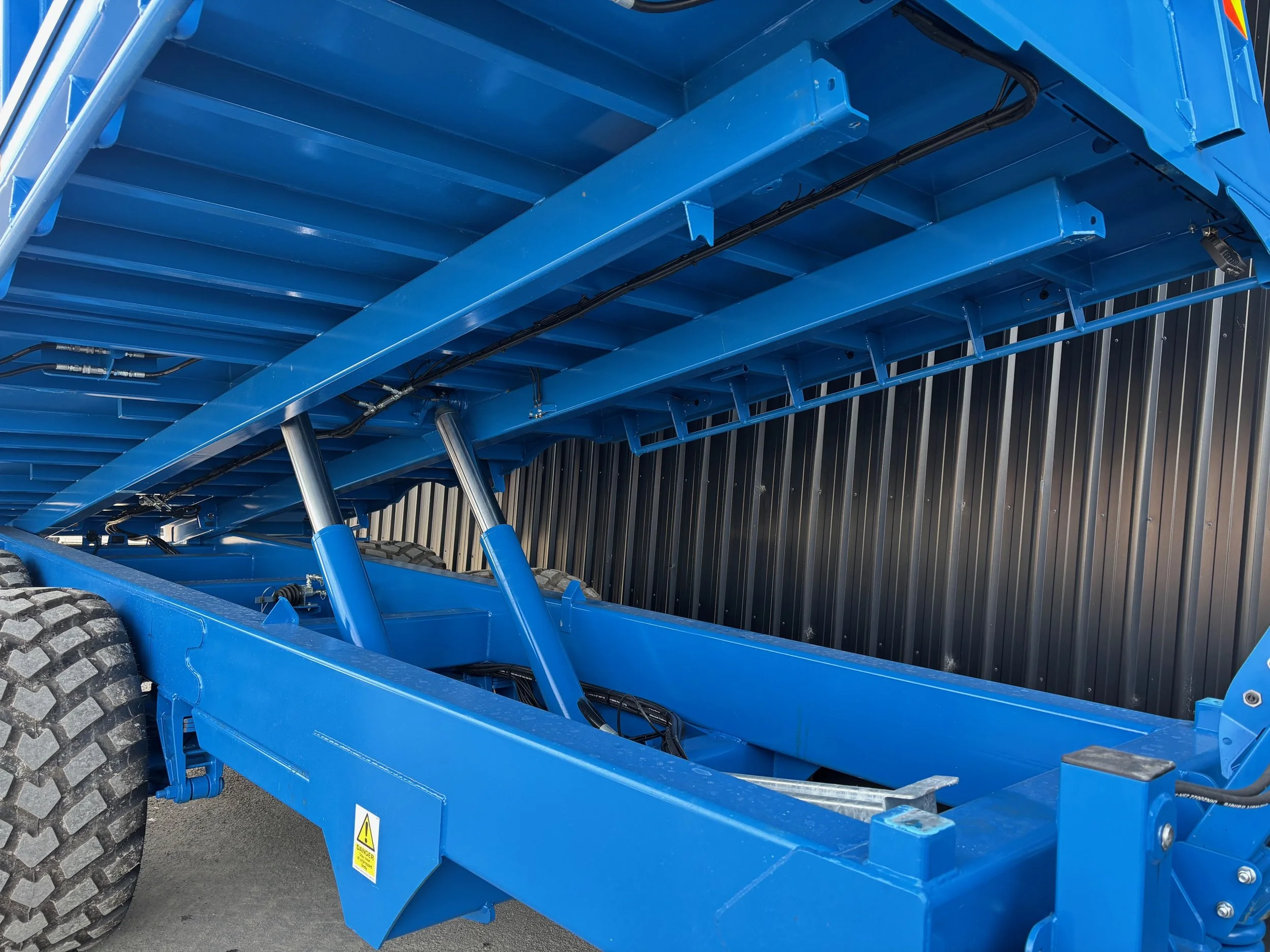

With a narrow drawbar to ensure tight turning. The safety chain mounts are built solid with quick remove pins so if you are using a quick hitch the safety chains can be removed to stop dragging chains. Heavy duty sprung draw bar with adjustable drawbar height as standard. The colour coded Hydraulic lines and light plug are all feed through the high stalk to ensure that they will not be caught while working and that they are out of the way. The Trailer deck is 2.7 Metres wide and 6.1 Metres long with optional Bale extension with LED marker lights down the side and LED Work lights under the deck that are turned on when the deck is lifted making visibility great for the operator. Below the deck the deck chassis sits inside the main chassis to bring the centre of gravity as low as possible and the hinge pin for the deck is through the chassis to give it the most strength and stability while tipping on uneven ground. This trailer is fitted with heavy duty suspension which is rated to carry 20 tonne which ensures that when the trailer is full to compacity it doesnt wallow around unlike running a large stack of lighter springs to make up the weight rating. With the heavy-duty leaf springs and extra width, the trailer has been built to with stability and ride comfort in mind. The deck and dirt sides are made with hardox Steel to ensure the longevity and strength of the trailer. The dirt sides and silage sides have got quick coupler hydraulic fittings and lifting eyes fitted so they can be easily removed.
